Pneumatic Actuator Scotch Yoke Type

AD Series

Item AD32 AD40 AD50 AD65 AD80 AD100 AD125 AD140 AD160 AD185 AD200 AD250 AD300 Operating Type Rack & Pinion Scotch - Yoke Operating Media Compressed Dry Air Operating Pressure 4 ~ 7kg/cm2 Rotating Angle 90° +5°/-10° Operating Temperature -20°C ~ 80°C(Option : -40°C ~ 200°C) Weight(kg) 0.3 0.5 1.4 2.3 3.9 6.7 11.3 16.4 23.7 38.1 45.5 65.8 78

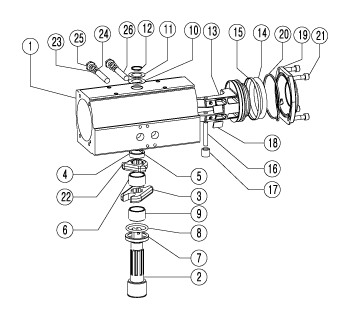

No. Part Name Material No. Part Name Material 1 Body Aluminum Alloy 14 Piston O-ring NBR 2 Shaft Steel Alloy(Nickel Plated) 15 Piston Guide-ring Engineering Plastic 3 Crank Steel Alloy 16 Piston Pin Steel Alloy 4 Bushing(Top) Engineering Plastic 17 Piston Roller Steel Alloy 5 Body O-ring(Top) NBR 18 Piston Pad Engineering Plastic 6 Shaft Roller(Top) Engineering Plastic 19 Cover Aluminum Alloy 7 Bushing(Bottom) Engineering Plastic 20 Cover O-ring NBR 8 Body O-ring(Bottom) NBR 21 Cover Bolt Steel Alloy 9 Shaft Roller(Bottom) Engineering Plastic 22 Stopper Steel Alloy 10 Body Washer(Bottom) Engineering Plastic 23 Adjust Washer Stainless Steel 11 Body Washer(Top) Stainless Steel 24 Adjust O-ring NBR 12 Body Snap-ring Stainless Steel 25 Adjust Nut Stainless Steel 13 Piston Aluminum Alloy 26 Adjust Bolt Steel Alloy

Unit : Nm

Model Angle Supply Air 4bar 5bar 6bar Close Open Close Open Close Open AD32 0° 4.5 4.5 6.0 6.0 7.3 7.3 45° 4.5 4.5 6.0 6.0 7.3 7.3 90° 4.5 4.5 6.0 6.0 7.3 7.3 AD40 0° 7.0 7.0 9.0 9.0 11.0 11.0 45° 7.0 7.0 9.0 9.0 11.0 11.0 90° 7.0 7.0 9.0 9.0 11.0 11.0 AD50 0° 37.0 28.0 38.0 37.0 42.0 41.0 45° 20.0 21.0 25.0 26.0 30.0 31.0 90° 33.0 38.0 39.0 40.0 50.0 52.0 AD65 0° 85.0 78.0 105.0 95.0 131.0 116.0 45° 45.0 49.0 57.0 63.0 68.0 73.0 90° 72.0 71.0 88.0 93.0 107.0 107.0 AD80 0° 162.0 143.0 209.0 183.0 261.0 210.0 45° 84.0 92.0 112.0 121.0 130.0 144.0 90° 130.0 133.0 171.0 156.0 198.0 209.0 AD100 0° 265.0 247.0 332.0 292.0 393.0 368.0 45° 147.0 165.0 185.0 196.0 237.0 250.0 90° 231.0 237.0 297.0 301.0 348.0 363.0 AD125 0° 576.0 551.0 725.0 678.0 886.9 793.9 45° 339.0 360.0 425.0 443.0 513.0 531.0 90° 510.0 491.0 635.0 613.0 750.0 732.0 AD140 0° 829.9 753.9 1104.9 922.9 1310.9 1096.9 45° 450.0 455.0 579.0 582.0 691.0 668.0 90° 689.0 720.0 862.9 879.9 1054.9 969.8 AD160 0° 1146.9 1061.9 1484.9 1311.9 1799.9 1599.9 45° 730.0 757.9 919.9 948.9 1109.9 1132.9 90° 1169.9 1319.9 1447.9 1634.9 1749.9 2026.9 AD185 0° 1840.0 1703.6 2382.2 2104.7 2887.5 2566.7 45° 1122.3 1165.3 1414.4 1458.9 1706.5 1741.8 90° 1720.5 1941.1 2129.3 2404.3 2573.4 2980.7 AD200 0° 2799.8 2599.8 3299.8 3199.8 3919.7 3819.7 45° 1459.9 1499.9 1919.9 1949.9 2299.8 2399.8 90° 2149.9 2299.8 2799.8 2899.8 3349.8 3449.8 AD250 0° 5500.0 3950.0 7100.0 4850.0 8480.0 5750.0 45° 2550.0 2500.0 3200.0 3150.0 3800.0 3760.0 90° 4180.0 4580.0 5240.0 5850.0 6180.0 7050.0 AD300 0° 9615.0 6732.0 12019.0 8416.0 14422.0 10099.0 45° 3960.0 3960.0 4950.0 4950.0 5940.0 5940.0 90° 6732.0 9415.0 8416.0 12019.0 10099.0 14422.0

Model PT AD32, AD40 PT 1/8 AD50 ~ AD200 PT 1/4 AD250 ~ (Choice) PT 1/4, 3/8, 1/2 Model K1 K2 AD32 25.5 25.5 AD40 50 25 AD50 ~ AD160 80 30 AD185 ~ 130 30

Unit : mm

Model ISO ØP.C.D N-G K L T T1 H H1 CH(Sta) CH(Opt) DP AD32 F03 36 4-M5 7 66 45 25 55 45 9x9 - 9 AD40 F03/F05 36/50 4-M5/M6 9 97 63 32 75 55 9x9 - 9 AD50 F03/F05/F07 36/50/70 4-M5/M6/M8 9 162 75 40 90 70 11x11 14x14 13 　 9.7xØ15 14 AD65 F05/F07 50/70 4-M6/M8 13 202 89 46 107 87 14x14 11.7xØ17 17 　 9.7xØ15 14 AD80 F07 70 4-M8 13 253 101 49.5 126 106 17x17 14.7xØ19 19 AD100 F07/F10 70/102 4-M8/M10 19 311 129 61.5 148 128 22x22 17.7xØ22 26 AD125 F07/F10 70/102 4-M8/M10 19 390 151 71.5 174 154 22x22 - 26 AD140 F10/F12 102/125 4-M10/M12 24 431 164 77 192 172 27x27 22x22 30 AD160 F14 140 4-M16 24 506 188 89 216 196 36x36 27x27 30 AD185 F14 140 4-M16 30 581 217 103 254 224 36x36 - 30 AD200 F16 165 4-M20 36 605 231 115 284 254 46x46 36x36 50 AD250 F16 165 4-M20 36 755 301 152 335 305 46x46 - 60 AD300 F16/F25 165/254 4-M20/8-M16 36 900 360 170 408 378 55x55 - 60

AS Series

Item AS40 AS50 AS65 AS80 AS100 AS125 AS140 AS160 AS185 AS200 AS250 AS300 Operating Type R & P Scotch - Yoke Operating Media Compressed Dry Air Operating Pressure 4.5 ~ 7kg/cm2 Rotating Angle 90° +5°/-10° Operating Temperature -20°C ~ 80°C(Option : -40°C ~ 200°C) Weight(kg) 0.6 1.6 3 5.3 9.5 17.6 23.9 36.6 62.6 77.2 119.6 145

No. Part Name Materials No. Part Name Materials 1 Body Aluminum Alloy 15 Piston Guide-ring Engineering Plastic 2 Shaft Steel Alloy(Nickel Plated) 16 Piston Pin Steel Alloy 3 Crank Steel Alloy 17 Piston Roller Steel Alloy 4 Bushing(Top) Engineering Plastic 18 Piston Pad Engineering Plastic 5 Body O-ring(Top) NBR 19 Cover Aluminum Alloy 6 Shaft Roller(Top) Engineering Plastic 20 Cover O-ring NBR 7 Bushing(Bottom) Engineering Plastic 21 Cover Bolt Steel Alloy 8 Body O-ring(Bottom) NBR 22 Spring Cap Engineering Plastic 9 Shaft Roller(Bottom) Engineering Plastic 23 Spring Steel Alloy 10 Body Washer(Bottom) Engineering Plastic 24 Stopper Steel Alloy 11 Body Washer(Top) Stainless Steel 25 Adjust Washer Stainless Steel 12 Body Snap-ring Stainless Steel 26 Adjust O-ring NBR 13 Piston Aluminum Alloy 27 Adjust Nut Stainless Steel 14 Piston O-ring NBR 28 Adjust Bolt Steel Alloy

Unit : Nm

Model Angle Supply Media Spring Torque : Middle Spring Torque : Strong Spring to Close Air to Open : 4.5bar Spring to Close Air to Open : 6bar AS40 0° 1.8 5.8 4.2 6.4 45° 2.3 5.2 5.3 5.3 90° 2.8 4.7 6.4 4.2 AS50 0° 14.0 26.0 17.0 34.0 45° 12.0 12.0 15.0 15.0 90° 26.0 14.0 34.0 17.0 AS65 0° 35.0 54.0 48.0 70.0 45° 23.0 28.0 37.0 32.0 90° 54.0 35.0 70.0 48.0 AS80 0° 60.0 100.0 80.0 130.0 45° 50.0 50.0 70.0 70.0 90° 100.0 60.0 130.0 80.0 AS100 0° 100.0 190.0 130.0 240.0 45° 80.0 80.0 110.0 110.0 90° 190.0 100.0 240.0 130.0 AS125 0° 243.0 403.0 358.0 520.0 45° 177.0 182.0 215.0 254.0 90° 395.0 210.0 441.0 341.0 AS140 0° 371.0 576.0 480.0 726.0 45° 236.0 265.0 330.0 360.0 90° 447.0 366.0 680.0 430.0 AS160 0° 550.0 750.0 769.9 1149.9 45° 420.0 420.0 560.0 560.0 90° 750.0 550.0 1149.9 769.9 AS185 0° 882.3 1203.1 1235.2 1844.8 45° 645.7 645.7 860.9 860.9 90° 1102.9 808.8 1691.1 1132.3 AS200 0° 1250.0 1510.0 1750.0 2160.0 45° 740.0 780.0 1040.0 1130.0 90° 1500.0 920.0 2140.0 1370.0 AS250 0° 2120.0 2760.0 3060.0 3660.0 45° 1320.0 1370.0 1830.0 1900.0 90° 2470.0 2200.0 3550.0 2760.0 AS300 0° 4308.0 6421.0 5740.0 8566.0 45° 2172.0 2283.0 2894.0 3046.0 90° 4396.0 3266.0 5857.0 4359.0

Model PT AS40 PT 1/8 AS50 ~ AS200 PT 1/4 AS250 ~ (Choice) PT 1/4, 3/8, 1/2   Model K1 K2 AS40 50 25 AS50 ~ AS160 80 30 AS185 ~ 130 30

Unit : mm

Model ISO ØP.C.D N-G K L T T1 H H1 CH(Sta) CH(Opt) DP AS40 F03/F05 36/50 4-M5/M6 9 97 63 32 75 55 9x9 - 9 AS50 F03/F05/F07 36/50/70 4-M5/M6/M8 9 257 75 40 90 70 11x11 14x14 13 　 9.7xØ15 14 AS65 F05/F07 50/70 4-M6/M8 13 314 89 46 107 87 14x14 11.7xØ17 17 　 9.7xØ15 14 AS80 F07 70 4-M8 13 421 101 49.5 126 106 17x17 14.7xØ19 19 AS100 F07/F10 70/102 4-M8/M10 19 500 129 61.5 148 128 22x22 17.7xØ22 26 AS125 F07/F10 70/102 4-M8/M10 19 606 151 71.5 174 154 22x22 - 26 AS140 F10/F12 102/125 4-M10/M12 24 682 164 77 192 172 27x27 22x22 30 AS160 F14 140 4-M16 24 781 188 89 216 196 36x36 27x27 30 AS185 F14 140 4-M16 30 894 217 103 254 224 36x36 - 30 AS200 F16 165 4-M20 36 982 231 115 284 254 46x46 36x36 50 AS250 F16 165 4-M20 36 1108 301 152 335 305 46x46 - 60 AS300 F16/F25 165/254 4-M20/8-M16 36 1344 360 170 408 378 55x55 - 60
