AQL Series

Electric Actuator Linear Type Actuator

Model

Max.
Force

Max.
Stroke

Speed
50/60Hz

Rated Current(A)

Valve
Stem
Threads

PCD on
Flange

Pillar
Threads

Weight

50/60Hz

KN

mm

mm/sec

1 Phase

3 Phase

DC

mm

mm

kg

110V

220V

380V

440V

24V

AQL04

4

40

0.7/0.9

0.45/0.44

0.26/0.25

0.30/0.31

0.28/0.40

3.00

Max. M20

100

M16

7

AQL06

6

60

0.7/0.9

0.49/0.48

0.29/0.28

0.32/0.33

0.30/0.42

3.50

Max. M20

100

M16

8

AQL08

8

50

0.9/1.1

0.92/0.88

0.48/0.46

0.18/0.17

0.17/0.16

2.90

Max. M20

100

M16

15

AQL10

10

50

0.9/1.1

0.95/0.91

0.50/0.48

0.19/0.18

0.18/0.17

3.20

Max. M20

100

M16

16

AQL12

12

50

0.9/1.1

0.98/0.94

0.52/0.50

0.20/0.19

0.19/0.18

3.50

Max. M20

100

M16

16

AQL20

20

100

0.9/1.1

1.75/1.68

0.93/0.89

0.30/0.30

0.32/0.31

6.00

Max. M24

165

M20

20

AQL25

25

100

0.9/1.1

1.80/1.72

0.95/0.92

0.32/0.32

0.34/0.33

7.00

Max. M24

165

M20

21

Manual Override	Handwheel with switchable declutchable lever
Enclosure (EN60529)	IP67
Cable Entry	2 x PF 3/4" TAP
Position Indication	Scale on pillar pointed by indicator
Housing	Aluminum alloy hard anodized for anti-corrosion
Painting	Epoxy power coated
Ambient Temperature	-20℃ ~ +70℃
Operating Mode (EC34-1, 8)	S2-Max. 30 Min / S4-50% ED, 800 c/h / S4-50% ED, 1200 c/h
Motor Protection	Thermal Switch, Class F Insulation
Space Heater	5W (110/220VAC) for anti condensation
Limit Switch	1 each for open/close (SPDT 10A 250VAC rating)

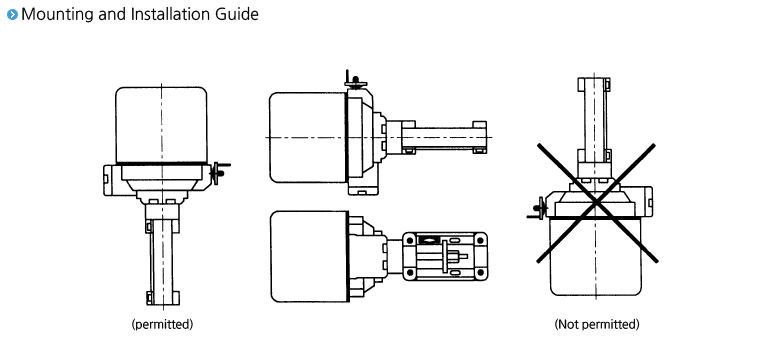

Mounting Direction	Any direction except for heading downward
Pillar Material	Stainless steel, carbon steel with special surface treatment

Available Optional Control
- Auxiliary limit switch	ALS	1 each for open/close (SPDT 10A 250VAC rating) (Except for AQL04/AQL06)
- Remote position control	RPC	4~20mA input/output, Selectable other signal
- Potentiometer	PK	0~1Kohm feedback
- Current transmitter	CT	4~20mA output
Local control
- Local control (1 Phase)	LP4	Local control unit
- Local control (3 Phase)	LM4	LP4 with reversing contactor and transformer
- Integral unit	ICM	Local controller with phase detector / discriminator
- Battery back up unit	BP	Fail Safe (Fail position either open/close)
- Explosion proof	EX	Exd IIB T4

AGL Series

Electric Actuator Linear Type Actuator

Model	AGL-10	AGL-20	AGL-35	AGL-55	AGL-100	AGL-250
Stroke (mm)	20		40	70		80
Output Torque (N)	1000	2000	3500	5500	10000	25000
Operating Time (Sec)	50	50	100	94	94	210
Power Supply	24V (220V) AC ±10%				220V (110V) AC ±10%
Rated Torque (A)	0.5(0.075)			2.1(0.25)	3(0.35)	(1)
Condenser (㎌)	34(0.474)			150(5)	210(5)	(6)
Rated Current (VA)	12(16.5)			51(55)	72(77)	(220)
Control Signal	CW / CCW
Control Output	-	Option (2*Open/Close 3A)			(2*Open/Close 10A)
Motor effic.	S4 - 30% ED - 600c/hr
Ambient Temp.	-15℃ ~ 50℃
Housing protection	IP54(EN60529)				IP65(EN60529)
Conduit Entries	PF 1/2 X 2EA
Weight (Kg)	2.4	3.2	3.3	10.4	11.6	21.3

Unit : mm

Model	ØB	H	E	G	D	F
AGL-10	168	208	62	62	81	111
AGL-20	140	295	90	125	106	185
AGL-35	140	330	90	125	130	185
AGL-55	160	355	100	135	125	215
AGL-100	180	585	100	170	195	330
AGL-250	270	665	120	200	250	445

Model	AGL-10P	AGL-20P	AGL-35P	AGL-55P	AGL-100P	AGL-250P
Stroke (mm)	20		40		70	80
Output Torque (N)	100	2000	3500	5500	10000	25000
Operating Time (Sec)	50	50	100	94	94	210
Power Supply	24V (220V) AC ±10%				220V (110V) AC ±10%
Rated Torque (A)	0.5(0.075)			2.1(0.25)	3(0.35)	1
Condensor (㎌)	34(0.474)			150(5)	210(5)	6
Rated Current (VA)	12(16.5)			51(55)	72(77)	(220)
Control Signal	(AC 24V : 0 ~ 10V / 4 ~ 20mA D.C) (AC220V : 0 ~ 10V or 4 ~ 20mA D.C)
Output Signal	0 ~ 10V or 4 ~ 20mA D.C
Motor effic.	S4 - 30% ED - 600c/hr
Ambient Temp.	-15℃ ~ 50℃
Housing protection	IP 54 (EN60529)
Conduit Entries	PF 1/2 X 2EA
Weight (Kg)	2.4	3.2	3.3	10.4	11.6	21.3

Unit : mm

Model	ØB	H	E	G	D	F
AGL-10	168	208	62	62	81	111
AGL-20	140	295	90	125	106	185
AGL-35	140	330	90	125	130	185
AGL-55	160	355	100	135	125	215
AGL-100	180	585	100	170	195	330
AGL-250	270	665	120	200	250	445
